SM2CEW 28' dish
 Take a look at the dish structure and the azimuth and elevation drives..



This dish was originally built by SM2JCP, Hans Nasstrom.
He used it successfully on EME for a few years before it was dismantled and moved to my QTH in 1989.

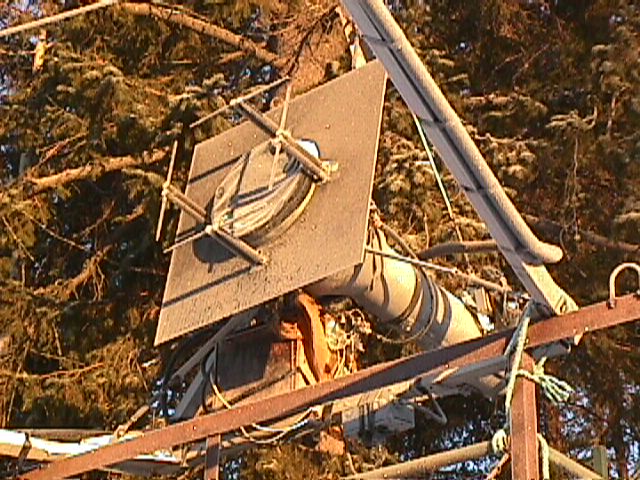

The feed is a dual dipole feed for 432 MHz and a W2IMU horn for 1296 MHz.

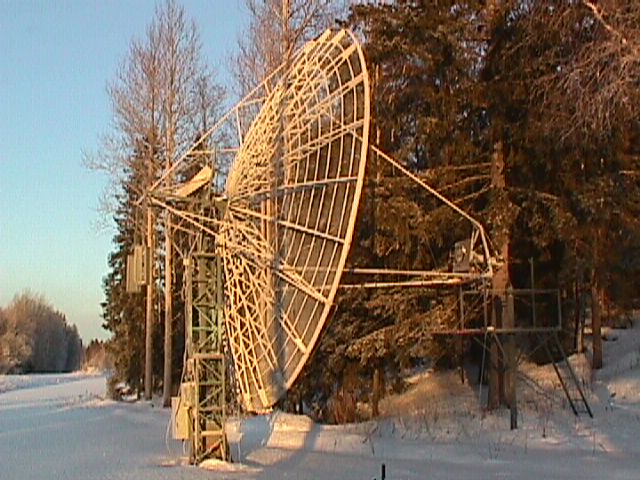

                                                        This is how I park the dish.The tripod is tied down to the platform so all stress is
                                                        taken off the Az and El rotors. The dish doesn't catch much snow when in this position.
